Citadel Engineering Company is a full-service inspection, maintenance and repair company that provides a wide range of services to the oil and gas industry. We offer tank inspections, tank cleaning, corrosion control, tank lining and other services to help our clients keep their facilities running smoothly.
Our storage tank inspections cover both in- and out-of-service inspections of vertical and horizontal bulk storage tanks, both above and below ground. A combination of techniques is used to provide a comprehensive storage tank inspection, reporting on the overall condition of tank floors, shells, roofs and structures. The inspection reports include engineering calculations in accordance with API 653 & 650 and other relevant specifications.
Storage Tank Inspection
Above-ground storage tanks hold high-value and hazardous products. Our tank inspections assess shell, floor, roof and appurtenances to determine current condition, remaining life and the next inspection interval.
Inspection Scope
External in-service inspection
Internal out-of-service inspection
Ultrasonic thickness surveys of shell and roof

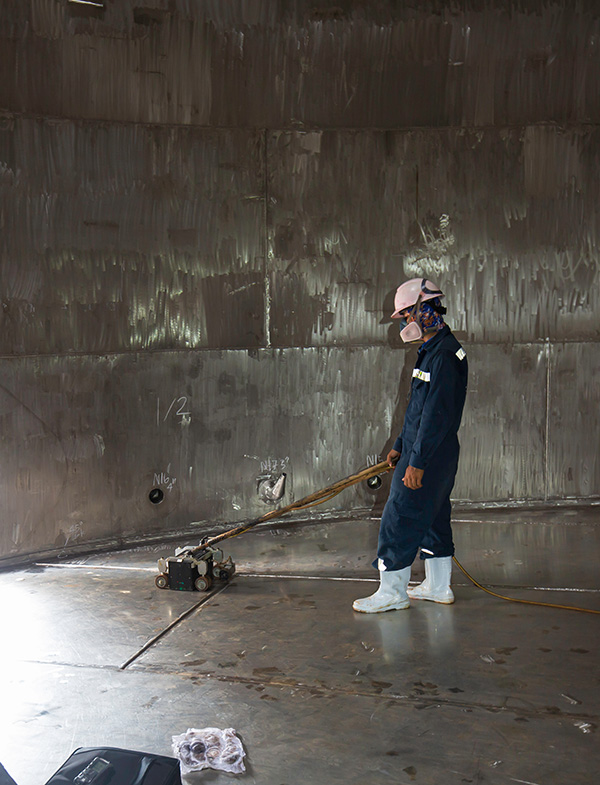

Floor inspection, including magnetic flux leakage (MFL) scanning where required
Weld inspection with VT, MT, PT and vacuum box testing
Settlement, roundness and verticality surveys
Standards
Inspections are performed with reference to API 653 (inspection, repair, alteration and reconstruction), API 650 (design and construction) and EEMUA 159, or to the client's own integrity requirements.
Integrity Outcomes
Remaining life
Corrosion rate and minimum thickness calculations.
Repair scope
Clear repair recommendations to restore fitness for service.
Next interval
Recommended next external and internal inspection dates.
Tank cleaning ahead of internal inspection can be provided by our Industrial Cleaning team.
Why Citadel Engineering Company
Accredited & certified
ISO/IEC 17025 calibration (PJLA #111664), IQAS-accredited inspection, calibration and certification bodies, and ISO 9001, ISO 14001 and ISO 45001 certified management systems.
Qualified personnel
Inspectors and technicians qualified to recognised schemes such as ASNT, ISO 9712, API individual certification and client-specific approvals, as required by each project.
Clear, auditable reporting
Every job is delivered with a traceable report: scope, procedure, equipment and calibration status, findings, acceptance criteria and recommendations.
Need tank inspection? Tell us about your asset, location and schedule and our team will prepare a technical and commercial proposal.
