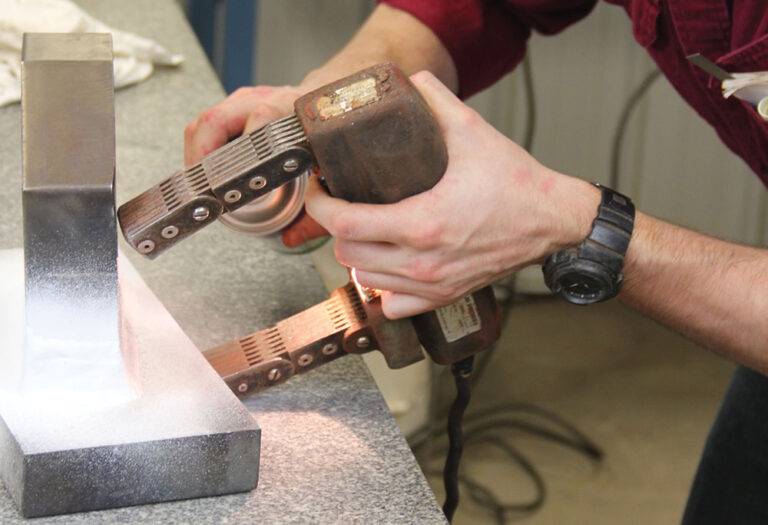

Used for finding surface/near surface defects in ferromagnetic material, Magnetic Particle testing (MT) is a versatile inspection method used for field and shop applications. Magnetic particle testing works by magnetizing a ferromagnetic specimen using a magnet or special magnetizing equipment. If the specimen has discontinuity, the magnetic field flowing through the specimen is interrupted and leakage field occurs. Finely milled iron particles coated with a dye pigment are applied to the specimen. These are attracted to leakage fields and cluster to form an indication directly over the discontinuity. The indication is visually detected under proper lighting conditions.
Magnetic Particle Testing (MT)
Magnetic particle testing detects surface and near-surface discontinuities in ferromagnetic materials. A magnetic field is applied to the part and fine iron particles gather at flux leakage caused by cracks, laps and seams, making indications visible.
Techniques
Wet fluorescent
Highest sensitivity under UV-A light, ideal for crack detection on welds and critical components.
Wet visible / colour contrast
Black ink on white contrast paint for field work in normal lighting.
Dry powder
Suited to rough surfaces and higher-temperature components.
Applications
Weld inspection on structures, vessels and piping
Lifting equipment, hooks, shackles and drilling tools
Forgings, castings and machined components
In-service crack detection during shutdowns
Standards
Testing is carried out to approved procedures in line with standards such as ASME Section V Article 7, ASTM E709/E1444 and ISO 9934, with acceptance to the applicable code or client specification.
Why Citadel Engineering Company
Accredited & certified
ISO/IEC 17025 calibration (PJLA #111664), IQAS-accredited inspection, calibration and certification bodies, and ISO 9001, ISO 14001 and ISO 45001 certified management systems.
Qualified personnel
Inspectors and technicians qualified to recognised schemes such as ASNT, ISO 9712, API individual certification and client-specific approvals, as required by each project.
Clear, auditable reporting
Every job is delivered with a traceable report: scope, procedure, equipment and calibration status, findings, acceptance criteria and recommendations.
Need magnetic particle testing? Tell us about your asset, location and schedule and our team will prepare a technical and commercial proposal.
